3 Meter Fully Automated EMC Test Chamber RF Shielding Anechoic Room with Ferrite Tile Absorber

This 3 meter fully automated EMC test chamber combines modular RF shielding with premium ferrite tile and hybrid absorbers for radiated emissions and immunity testing. Designed in accordance with EN 50147-2, ANSI C63.4, EN55022, EN61000-4-3 and CISPR standards, it provides a turnkey solution for in-house EMC compliance testing.

• 3 meter test distance for radiated emission and immunity measurements
• Full anechoic configuration with ferrite tile absorbers (600x600mm) on all surfaces
• Hybrid pyramid foam absorbers for high frequency performance

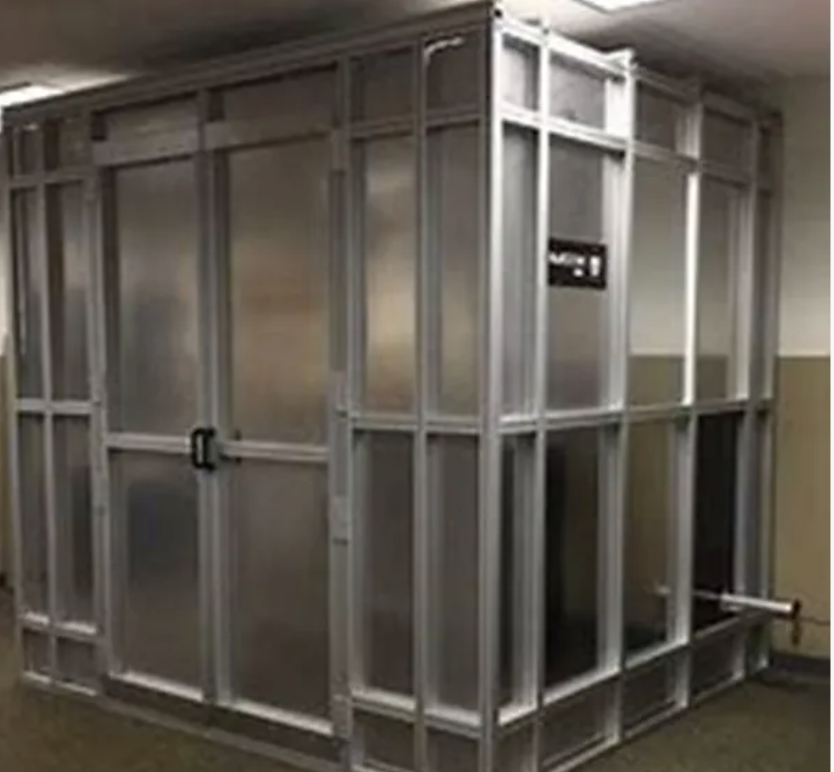

• Modular 2mm galvanized steel shielding panels with bolted assembly
• Fully automated antenna mast and turntable system with positioning controller
• Integrated CCTV camera system for remote test monitoring

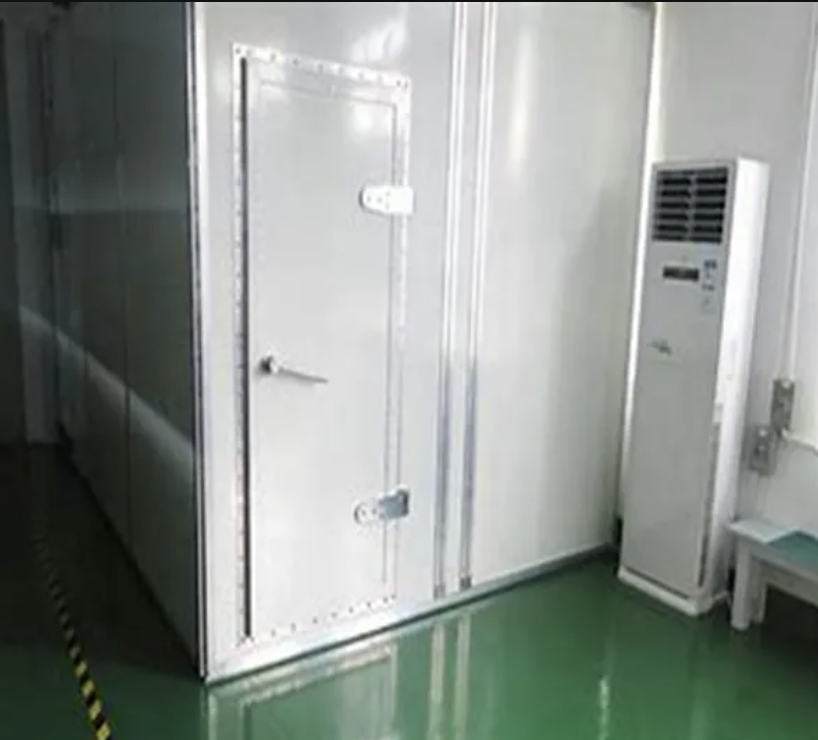

• RF shielding door (1.2x2.1m) with beryllium copper finger contacts
• Power line filters (16A/32A/63A) with low leakage design
• Honeycomb ventilation panels (300x300mm and 300x600mm)
• RF patch panel with N-type, BNC and SMA connectors
• Fiber optic waveguide for data link
• Anti-static raised floor system
• LED lighting system with EMI filtering
• EUT power distribution with filtered AC and DC outlets

Full installation, calibration and on-site training provided. Contact us for chamber sizing and customization.
